   HOISTWAY JUNCTION BOXES, WIREWAYS (TROUGH), FITTINGS

   All parts CSA and/or UL listed, unless noted otherwise.



Cable Junction Box

TCJB-80

80 Wires, 3.25”H x 8.5”W x 24”L
Knockouts 0.5/0.75" x 14, 1.25” x 4
TCJB-108

108 Wires, 3.25”H x 8.5”W x 36”L
Knockouts 0.5/0.75" x 10, 1.25” x 8
Comes with cover assembly. 250VAC 20A,
LR-85867, CSA-B44.1, ASME-A17.5




Hoistway Junction Boxes, Wireways, Fittings PDF Flyer
Hoistway Junction Boxes,
Wireways, Fittings Hoistway Junction Boxes, Wireways, Fittings PDF Flyer PDF Flyer


Also Available
• Additional Wireway Sizes and Fittings
• Travel Cables, Multi-Cables, Interlock Wire

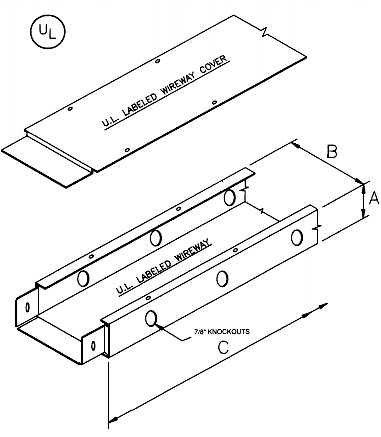

Wireway U/L

CWL425.10 2.5"H x 4"W x 120"L
CWL625.10 2.5"H x 6"W x 120"L
CW44 4"H x 4"W x 120"
Comes with two (2) 60" covers and screws.
0.5/0.75" knockouts on 12" centers on
both sides.

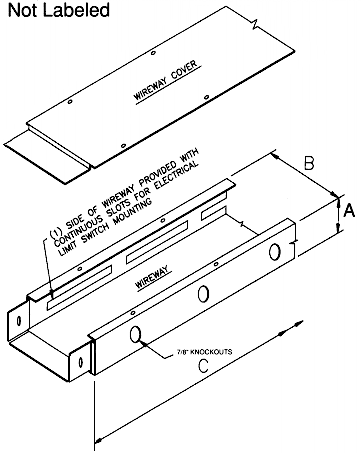

Wireway N/L

CW425.10 2.5"H x 4"W x 120"L
CW625.5 2.5"H x 6"W x 60"L
Comes with one (1) or two (2) 60" covers
and screws. 0.5" knockouts on one side
and continuous slots on another side for
limit switch mounting.


Wireway Cover

CVR-25-U 2.5"W x 60"L
CVR4-U 4"W x 60"L


Wireway Connector

CWCON-25444 2.5"H x 4"W
CWCON-25646 2.5"H x 6"W




Wireway Elbow 90

CW90254 2.5"H x 4"W
CW90256 2.5"H x 6"W
CW90425 4"H x 2.5"W
CW90625 6"H x 2.5"W


Wireway Tee

CWT254 2.5"H x 4"W
WTEE-256 2.5"H x 6"W
CWT425 4"H x 2.5"W
WTEE-625 6"H x 2.5"W

Wireway End Cap

CWEPT-254-U 2.5"H x 4"W
WEPT256-U 2.5"H x 6"W
