  MONTGOMERY (KONE) Machined

Cylinder Head Packing



Cylinder Head Identification

PLUNGER SIZE

PACKING SET

SEAL SET
(set of 2 seals)

SPLIT AUTOPAK SET
3-15/16" 3EA026-11 8RF026-11 1AT074-01
4.46" 3EA026-12 8RF026-12 1AT074-02
5.52" 3EA026-13 8RF026-13 1AT074-03
5.72" 9EA026-14 9RF026-14 1AT074-04
6.59" 3EA026-15 8RF026-15 1AT074-05
7.47" 3EA026-16 8RF026-16 1AT074-06
8.57" 3EA026-17 8RF026-17 1AT074-07
Autopak is the recommended replacement packing. Use with filler ring if possible.
Manufactured since 1966.
Always reuse existing filler ring when possible.
Uses bronze gland.

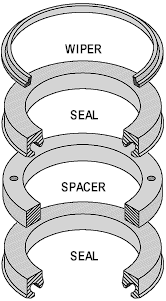

Solid Packing Set


Split Autopak Set
