   INSPECTION STATIONS / EMERGENCY LIGHTS



   INSPECTION STATION / EMERGENCY LIGHT COMBO

Inspection Station / Emergency Light Combo

Inspection station, emergency light, and alarm bell combined into one cost-effective unit. Reduces field installation time.
Designed to meet ANSI A17.1 Elevator Safety Code requirements. CSA approved.
  Common   •  Remote light source with 60" of lead wire
  Features:  "Up" button, DPDT (2NO-2NC), 10A 250VAC
"Dn" button, DPDT (2NO-2NC), 10A 250VAC
"Enable/Safe" button, SPDT (1NO-1NC), 10A 250VAC
"Run"/"Stop" switch, SPST (1NO), 20A 250VAC
"Light" On/Off switch SPST (1NO), 20/10A 125/250VAC
•  Ceramic incandescent light bulb socket
• “Operate/Inspection” switch,
   DPDT (2NO-2NC), 15/10A 125/250VAC
•  3-Prong electrical outlet, 15A 125VAC
•  NiCd battery and solid state circuitry
•  Six (6) pre-drilled mounting holes, 0.3” Dia.

  Custom •  “Run”/”Stop” Push/Pull Mushroom Switch
  Features: •  Rough service lamp
•  Rough service lamp guard
•  Pushbutton and switch safety guards
•  Custom contact arrangement*
•  Permanently attached work light**
•  Wiring***


Elevator car inspection
 stations PDF flyer

Elevator car inspection
 stations PDF flyer Elevator car inspection
stations PDF flyer



* Contact arrangement can be modified upon request.
** Permanently attached work light w/GFCI, lamp and strain relief. Standard cord length 12', other lengths can be made.
*** Stations could be prewired according to customer specifications with multi-cable and optional flexible metal conduit.
Please specify length.

Model / Option Fire Service
Buzzer & Jewel
Top Mounted
Alarm Bell
Electric outlet
3-Prong
Height
(Typical)
Box size
   TCIDG-EL2 N/A Bell, 6VDC Duplex, GFCI 6.6" 12"L x 4.1"H x 6"
   TCIDG-EL2I N/A Bell w/interrupter, 6VDC Duplex, GFCI 6.6" 12"L x 4.1"H x 6"
   TCIG-EL2 Fire Service, 115VAC Bell, 6VDC Duplex, GFCI 6.6" 12"L x 4.1"H x 6"
   TCIG-EL2I Fire Service, 115VAC Bell w/interrupter, 6VDC Duplex, GFCI 6.6" 12"L x 4.1"H x 6"
   TCID-EL2I N/A Bell w/interrupter, 6VDC Duplex 6.6" 12"L x 4.1"H x 6"
   TCI-EL2 Fire Service, 115VAC Bell, 6VDC Single 6.6" 12"L x 4.1"H x 6"
   TCI-EL2I Fire Service, 115VAC Bell w/interrupter, 6VDC Single 6.6" 12"L x 4.1"H x 6"



Available

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Operate / Inspect”, "Light" On/Off
 "Run"/"Stop" Push/Pull Mushroom Switch,
• Ceramic bulb socket
Remote light source

• Bell, with interrupter, 6VDC
• Fire Service buzzer and jewel, 115VAC
• Single 3-prong outlet, 15A 125VAC

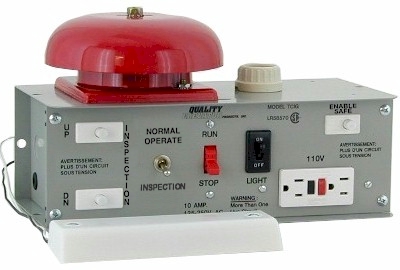

Model TCIDG-EL2

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Normal Operate / Inspection”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, 6VDC
• Duplex GFCI outlet, 15A 125VAC

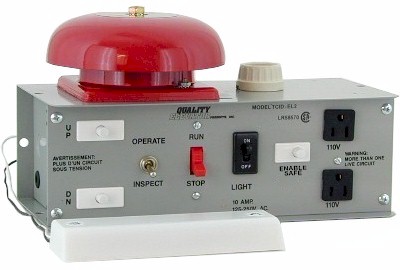

Model TCIDG-EL2I

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Normal Operate / Inspection”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, with interrupter, 6VDC
• Duplex GFCI outlet, 15A 125VAC

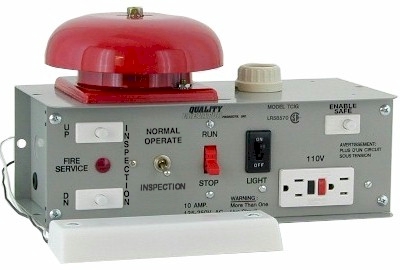

Model TCIG-EL2

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Normal Operate / Inspection”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, 6VDC
• Fire Service buzzer and jewel, 115VAC
• Duplex GFCI outlet, 15A 125VAC
Model TCIG-EL2I

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Normal Operate / Inspection”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, with interrupter, 6VDC
• Fire Service buzzer and jewel, 115VAC
• Duplex GFCI outlet, 15A 125VAC

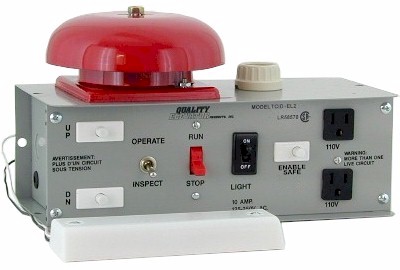

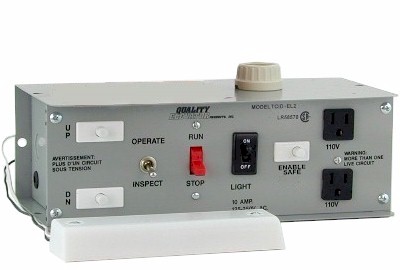

Model TCID-EL2I

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Operate / Inspect”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, with interrupter, 6VDC
• Duplex 3-prong outlet, 15A 125VAC

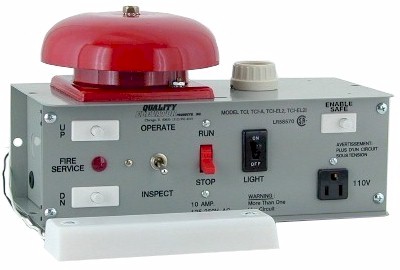

Model TCI-EL2

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Operate / Inspect”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, 6VDC
• Fire Service buzzer and jewel, 115VAC
• Single 3-prong outlet, 15A 125VAC

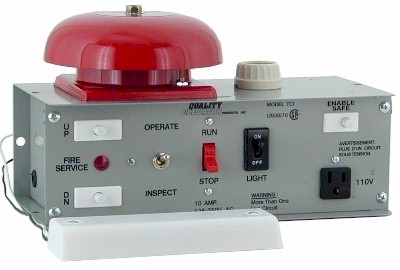

Model TCI-EL2I

Buttons: "Up", "Dn", "Enable/Safe"
Switches: “Operate / Inspect”,
  "Run"/"Stop", "Light" On/Off
• Ceramic bulb socket
Remote light source

• Bell, with interrupter, 6VDC
• Fire Service buzzer and jewel, 115VAC
• Single 3-prong outlet, 15A 125VAC
